Concrete Floor Thickness for Car Hoist Installation

Key Factors to Consider for a Flawless Car Hoist Installation in Your Garage

When contemplating the installation of a car hoist in your garage, it is of utmost importance to ensure that your concrete floor adheres to the necessary specifications. A strong and stable foundation is crucial not only for the effective operation of the hoist but also for the protection of your vehicles and the safety of anyone using the equipment. Proper preparation and stringent adherence to installation guidelines can greatly improve both the efficiency and lifespan of your hoist, ultimately making your investment a fruitful one.

Most car hoists require a concrete slab that is a minimum of 100mm (4 inches) thick. This specific measurement is essential as it allows for the even distribution of weight from both the vehicle and the hoist itself, thereby minimising the risk of cracking or subsidence over time. For heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially increasing to 150mm (6 inches), to guarantee optimal performance and safety during operation.

Step-by-Step Guide to Determining the Optimal Concrete Thickness for Your Car Hoist

Assessing the thickness of your concrete floor is a critical factor in ensuring the safe installation and efficient operation of a car hoist. Several considerations must be taken into account when determining the appropriate depth for your slab to guarantee that it can adequately support the loads it will encounter during use. Understanding these factors will help you avoid expensive mistakes and significantly improve the safety of your garage setup.

Understanding Load Capacity for Your Car Hoist Installation

Car hoists impose significant stress on the concrete floor beneath them, making it essential to understand the total weight that your concrete floor must bear. This consideration includes not only the weight of the vehicle but also the weight of the hoist itself, which can add a considerable load to the floor. It is crucial to calculate these weights accurately to ensure safety.

For instance, a standard passenger vehicle typically weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Furthermore, it is prudent to factor in extra weight as a safety buffer, ensuring that the structure can withstand unforeseen circumstances and potential overloads during operation.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is generally adequate. However, should you intend to lift significantly heavier vehicles, it may be necessary to consider a thicker slab to ensure both safety and stability during operation.

Consulting with a structural engineer is a wise choice, as they possess the expertise to provide tailored advice and assist you in calculating the precise thickness required based on your unique circumstances and requirements.

Exploring Different Types of Car Hoists and Their Concrete Thickness Requirements

It is vital to recognise that various types of car hoists come with specific requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners aiming to incorporate a car hoist into their garage effectively.

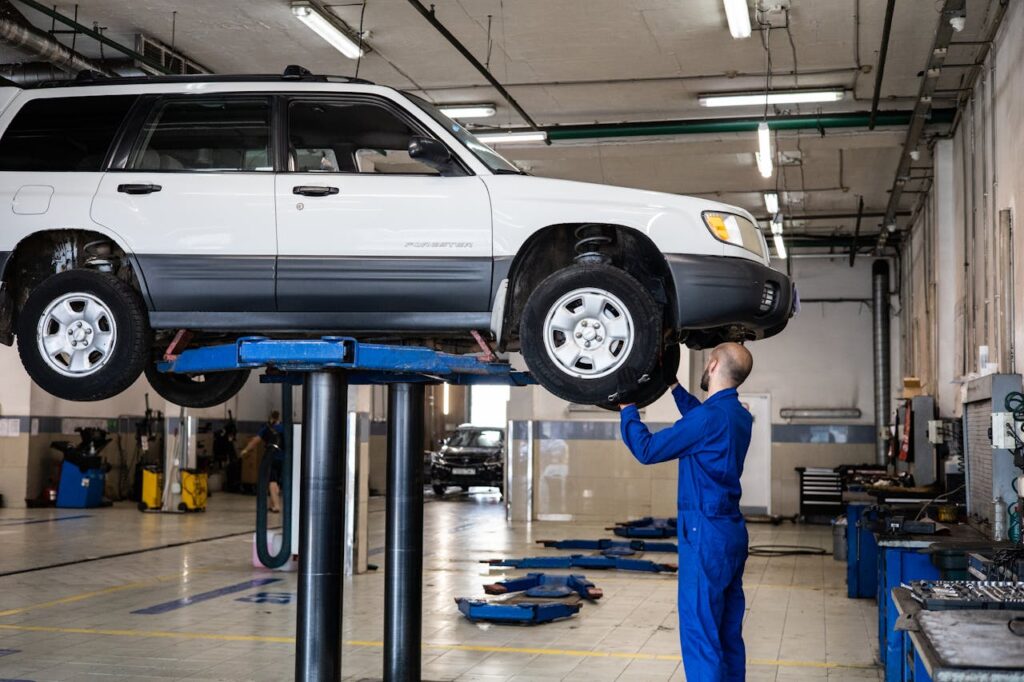

Two-post lifts typically exert pressure at specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load they impose. This consideration ensures that the installation is safe and functional.

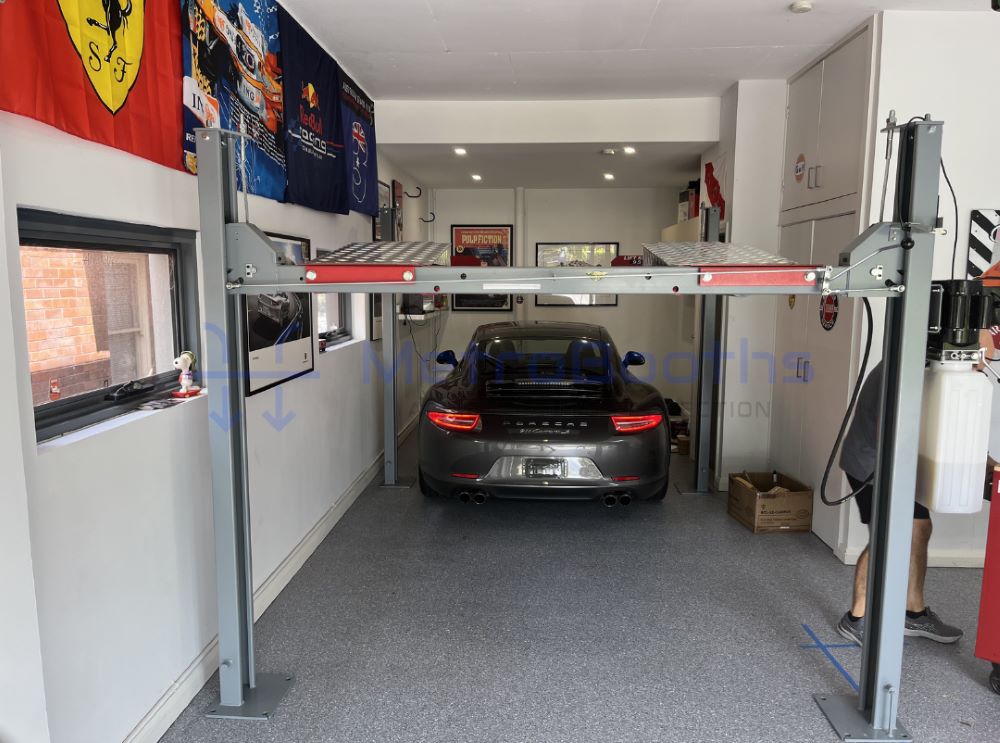

In contrast, four-post lifts distribute weight more evenly across a larger area, allowing them to operate efficiently with a slightly thinner slab, typically within the range of 100 mm to 125 mm. Understanding these differences greatly influences your planning and installation process, ensuring that you choose the right system for your needs.

Always refer to the manufacturer's specifications for the hoist you are considering, as they will typically outline the minimum concrete thickness required for safe operation. Adhering to these guidelines is essential for achieving optimal performance and longevity of your equipment.

Bear in mind that these recommendations should be viewed as general guidelines. Your specific needs may vary based on the configuration of your garage and the types of vehicles you plan to lift.

Understanding the Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is as crucial as its thickness. Stronger concrete can frequently be utilised at a thinner depth while still providing adequate support for heavy loads, a significant consideration in the context of a car hoist installation.

It is advisable to utilise concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend selecting concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting, ensuring that the installation can withstand the demands placed on it.

Incorporating reinforcement techniques is essential for greatly enhancing the durability of your concrete. The addition of steel mesh or rebar can significantly improve the overall strength of your concrete floor, potentially allowing you to employ a thinner slab while still ensuring it effectively supports heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, a vital consideration for budget-conscious homeowners looking to achieve a safe installation.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This addition can help mitigate the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation and preserving the structural integrity of your floor.

Critical Factors for Successful Car Hoist Installation and Operation

When it comes to installing a car hoist, meticulous site preparation and ongoing floor maintenance are of paramount importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment and ensuring the longevity of your installation.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before proceeding with the installation of your car hoist, it is imperative to confirm that your concrete floor meets all essential specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free from any cracks to ensure optimal performance and safety during operation.

For new concrete pours, it is crucial to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Moreover, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability. This consideration is vital for long-term functionality.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide recommendations for a successful installation.

Ongoing Maintenance Essentials for Your Car Hoist After Installation

Once your car hoist is successfully installed, it is vital to regularly monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or signs of stress, addressing any issues promptly to prevent larger complications that could affect the hoist's functionality and safety.

It is essential to immediately clean up any oil and fluid spills, as these substances can weaken the concrete over time and potentially lead to structural issues. Additionally, using protective mats under the lift arms can help minimise wear and tear on the floor, thereby extending its lifespan and maintaining the integrity of your installation.

Regularly checking the tightness of the anchor bolts is also crucial, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance task can prevent costly repairs and ensure safe usage of your hoist.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly prolong the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment in your garage's functionality and aesthetics.

Frequently Asked Questions About Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful attention to the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts to provide clarity on this important topic.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support the weight of both the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation, ensuring that your installation meets all necessary standards.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is prudent to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing you with peace of mind and ensuring a safe setup.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards and potential damage. If your existing floor does not meet the required thickness, adding a new layer of concrete may be necessary to achieve the appropriate depth for safe operation, ensuring that your installation complies with safety standards.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, particularly under demanding conditions.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring that your installation is both safe and effective.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, safeguarding your investment in a reliable lifting solution.
