Dedicated Circuits for Power Solutions in Workshops with Heavy Tools

If you own a shed on rural land and are contemplating converting it into a fully equipped workshop, prioritising the electrical configuration is essential. Utilising a MIG welder, air compressor, and table saw on the same circuit as your home could result in significant complications, including frequent tripped breakers, flickering lights, and potentially dangerous overload scenarios that threaten both safety and operational efficiency.

This detailed guide outlines the key aspects of wiring a dependable workshop in the Mid North Coast. We will delve into the necessity of dedicated circuits, sub-boards, and the advantages of three-phase power for larger machinery. If your requirements are limited to basic power needs—such as lighting and a few sockets—please refer to our guide on Shed Wiring on Acreage for a suitable starting point. This article is designed specifically for workshops that demand substantial power for intensive tasks.

Why Dedicated Circuits Are Essential for Workshop Power

Many homes operate multiple outlets on shared circuits, which is generally adequate for low-power appliances like kettles and televisions. Challenges arise when attempting to operate a 32-amp MIG welder alongside an air compressor simultaneously. This can lead to significant issues if not managed correctly.

Consider the possible consequences of connecting heavy equipment to household circuits:

• Frequent tripped breakers — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker immediately or, worse, could cause the wiring to overheat before the breaker functions.
• Voltage drops — Extended cable runs from the main board to the shed may result in voltage sag. This can cause your tools to operate at elevated temperatures, perform less efficiently, and wear out faster.
• Power disruptions in the home — Your partner may experience a power outage in the kitchen due to the compressor starting up, often leading to uncomfortable discussions.
• Heightened fire risks — Overloaded wiring within walls and cable runs is a leading cause of electrical fires in rural regions.

Implementing dedicated circuits can effectively mitigate these problems. Each heavy tool receives its own dedicated circuit, properly sized for its load, along with individual breaker protection. This arrangement ensures that no circuits are shared, thus preventing overload.

Assess the Power Needs of Common Workshop Machinery

Before your electrician can devise an effective circuit layout, it is crucial to grasp the power demands of your equipment. Below is an overview of the typical power requirements for common workshop tools:

• MIG welder — Requires between 15A and 32A, depending on the model. Larger 240V welders typically operate at the higher end. Three-phase units will have different power requirements (to be discussed later).
• Air compressor — Consumes about 10A to 15A. The startup surge can be considerable—compressor motors often draw three to four times their running current for a few seconds upon initiation.
• Table saw — Generally uses between 10A to 15A for a quality cabinet saw. Less expensive contractor saws may consume less power, but it is likely you are not seeking a budget option.
• Lathe (wood or metal) — Similar to table saws, these typically require between 10A and 15A, with metal lathes usually at the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It needs to operate continuously alongside other tools, thus it should have its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, so it requires a dedicated circuit.

When you total the power consumption, it becomes clear that a single 20-amp circuit from the house will not suffice. A well-equipped workshop can easily demand 80 to 100+ amps across all circuits when operating at full capacity, underscoring the need for a comprehensive electrical plan.

Choose the Right Circuit Breaker Size and Incorporate RCD Protection

Each circuit in your workshop requires a breaker that corresponds with the cable size and expected load. Your electrician will calculate this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Ideal for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery that demands substantial power.
• Three-phase breakers — These should be sized according to specific equipment requirements (details to follow).

RCD protection is imperative. In compliance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must be equipped with RCD (safety switch) protection. This legal requirement is designed to safeguard against the high risks associated with workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs quickly cut power if there is a current leak to earth, which can be the difference between a minor shock and a serious injury.

Typically, your electrician will implement a combination of RCDs and MCBs (miniature circuit breakers) or RCBO units that integrate both functionalities. RCBOs are particularly beneficial in workshops because a fault in one circuit does not disrupt power to others, resulting in a more reliable electrical system.

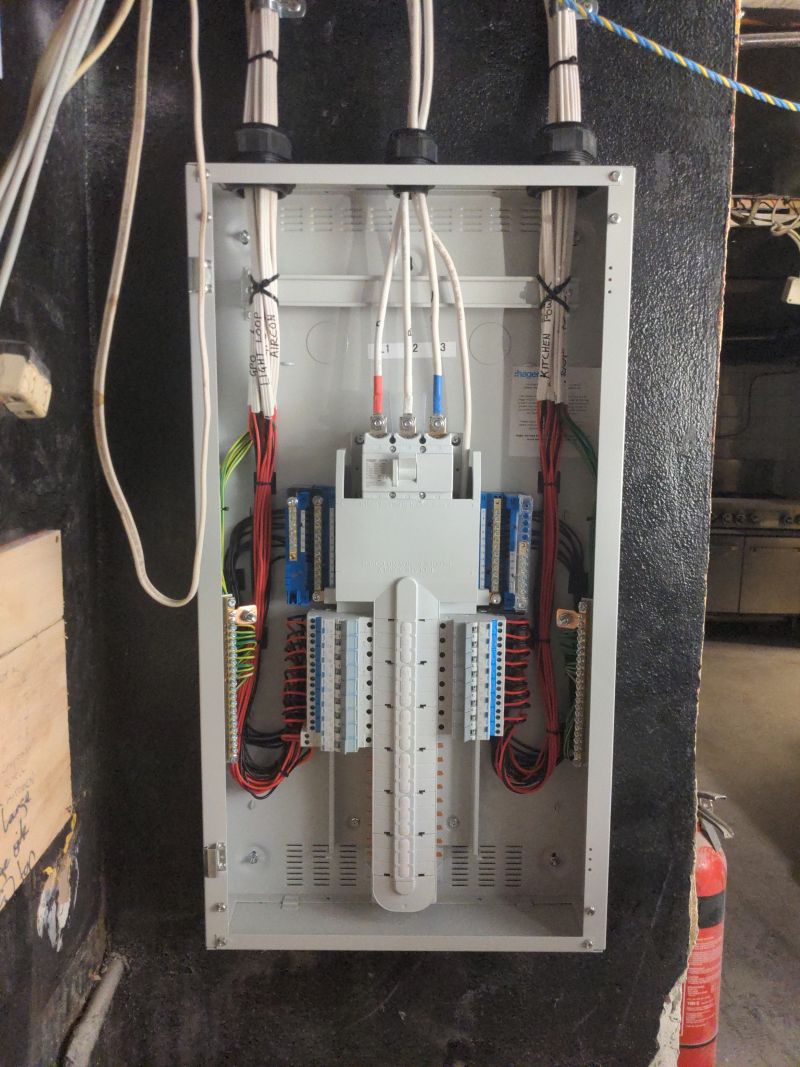

Install a Dedicated Sub-Board to Fulfil Your Workshop's Electrical Requirements

Rather than running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop provides a more efficient solution. Here are the benefits:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This setup reduces voltage drop and lowers cable costs.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t need to return to the house to reset it, enhancing efficiency.
• Future expansion — A suitably sized sub-board allows for additional circuits to be added later, facilitating the incorporation of new tools in the future.
• Isolation capability — You can switch off all workshop power from a single main switch without affecting the household electricity, which is a crucial safety feature.

If your house switchboard is outdated or at full capacity, an upgrade may be necessary to effectively support the workshop sub-board. Older ceramic fuse boards are unlikely to safely accommodate the increased load.

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus an allowance for future additions to ensure long-term efficiency.

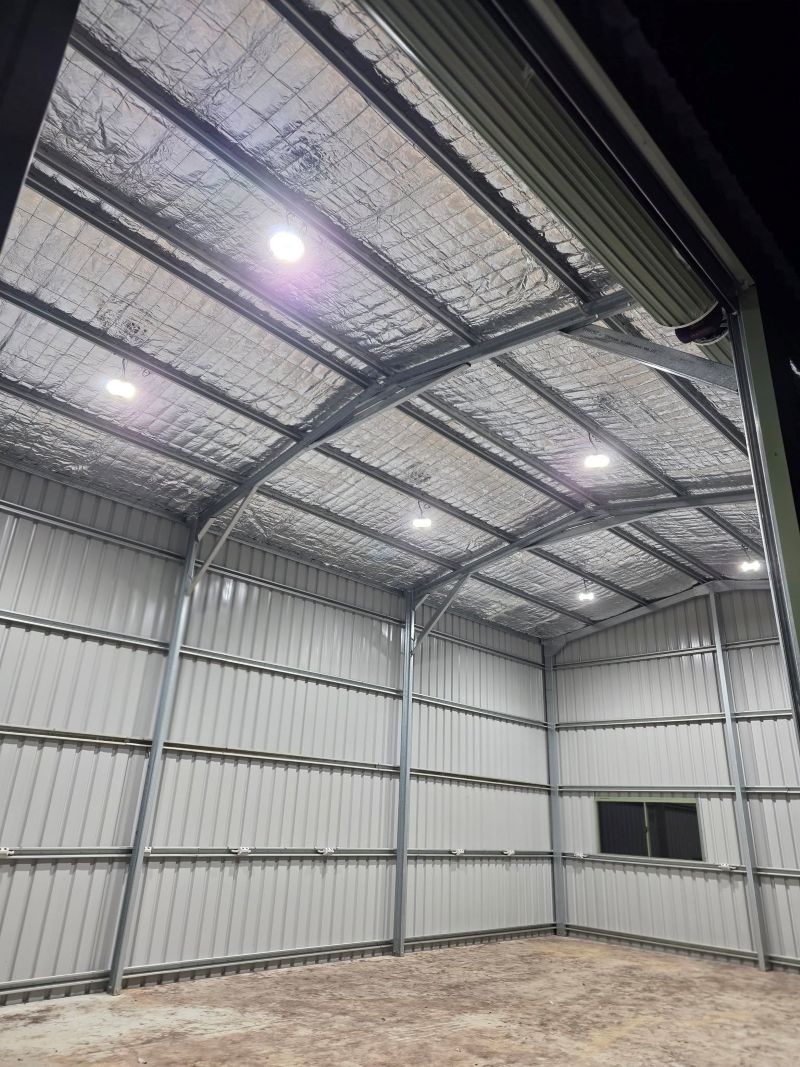

Create a Comprehensive Lighting Plan for Your Workshop

Sufficient lighting is vital for safety in your workshop. Clear visibility is particularly important when handling sharp blades and hot materials. Here are some key lighting considerations:

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the workspace. Aim for a minimum of 500 lux at bench height to ensure visibility.
• Dust-proof fittings — Standard lights can become obscured by sawdust and metal shavings. Opt for IP-rated fittings that are resistant to dust and moisture for durability and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is critical for precision work, enhancing productivity and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring you still have illumination if a power circuit trips. Being left in the dark next to a running table saw poses a significant safety risk.

We have extensive experience in lighting layouts for commercial environments. Our team can assist you in developing a workshop lighting plan that significantly enhances your working environment while adhering to safety standards.

Ensure Effective Ventilation and Dust Extraction Circuits

When engaged in woodworking or welding, ensuring proper ventilation is just as vital as having sufficient electrical power. Dust extraction systems and exhaust fans require their dedicated circuits due to several important factors:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise safety and efficiency.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to guarantee proper airflow. If you are using a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications.

Explore the Benefits of Three-Phase Power for Heavy Equipment

When you engage in intense metalwork or operate large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power presents several distinct advantages:

• Increased power capacity — Three-phase motors are more efficient and deliver greater power without the excessive startup surges commonly seen with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, extending the lifespan of your tools and enhancing overall efficiency.

Accessing three-phase power in rural areas of the Mid North Coast depends on availability at street level. Some properties may already have a three-phase supply, while others might need a phase converter or a new connection from Essential Energy.
For further details, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will need the installation of a three-phase switchboard equipped with appropriately rated breakers and an effective earthing system to ensure safety and compliance.

Protect Your Equipment with Surge Protection

Tools with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Your workshop generates surges each time a large motor starts or stops. Coupled with the voltage instabilities frequently found in rural power lines, your equipment is at considerable risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This is a cost-effective measure compared to the expense of replacing the electronic components of a $3,000 welder or CNC controller.

If your property is susceptible to storms—which is common in the Mid North Coast—we recommend adding surge protection at the main switchboard to shield against lightning-induced surges that could damage your equipment.

For properties reliant on a generator for backup power, incorporating a generator changeover switch ensures seamless transitions between mains power and generator supply without risking back-feeding or damaging connected equipment.

Incorporate Additional Features into Your Workshop Wiring

Here are several more features to consider incorporating into your workshop wiring from the outset:

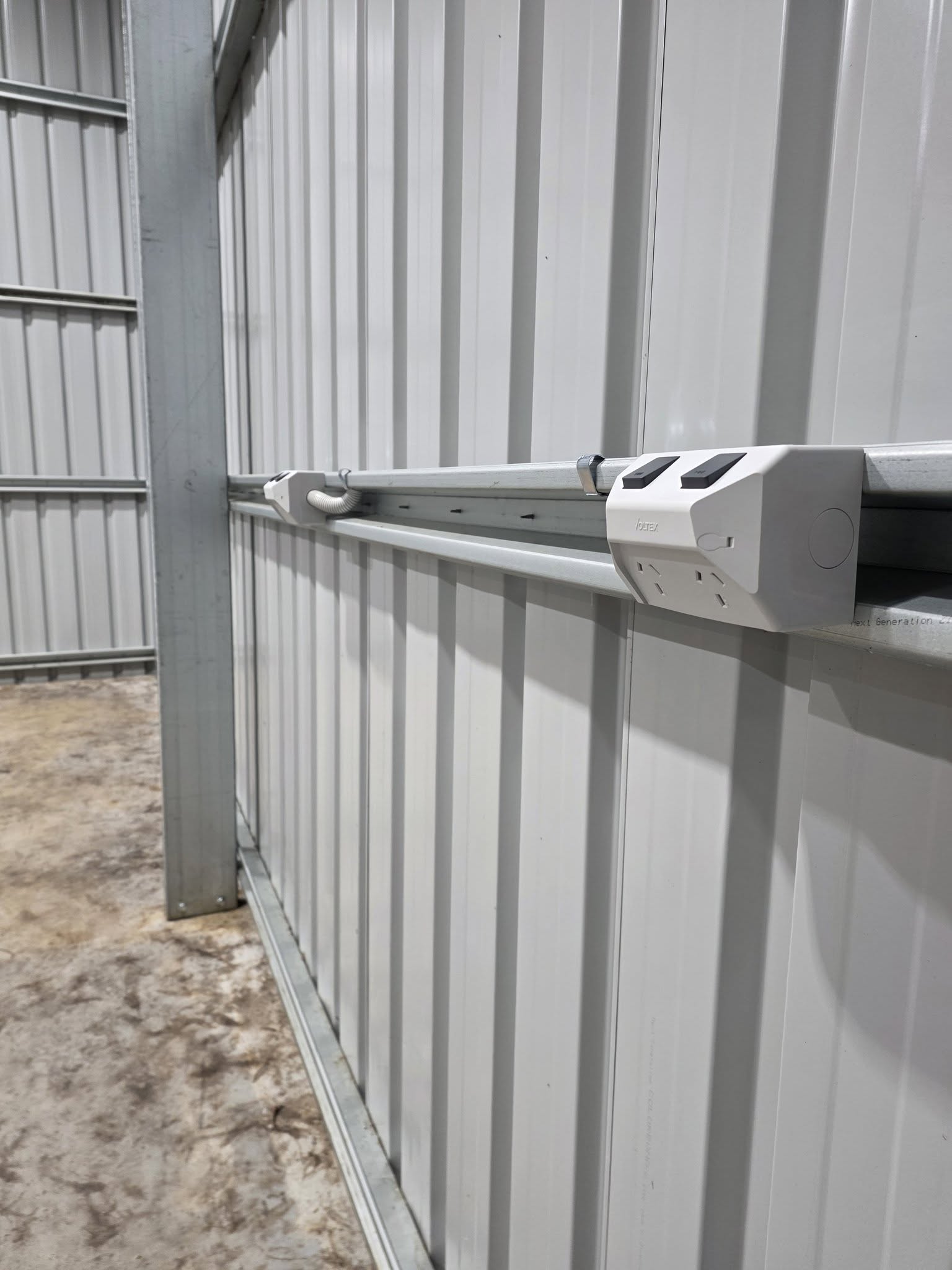

• Ample power points — Install more power points and switches than you think you will need. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and place outlets conveniently near key machinery.
• Data and communication — If you need internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring alongside the electrical setup. It is significantly easier to run cables during the initial fit-out than after the walls are completed.
• External lighting — Include floodlights outside the workshop to aid access during early mornings and late evenings, particularly in rural areas that lack adequate street lighting.
• EV or equipment charging — If you are using electric tools (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Estimate the Costs of Your Workshop Electrical Installation

Cost estimates will vary based on the size of the workshop, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from £5,000
• Comprehensive dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, detailed lighting design) — Starting from £10,000
• Three-phase workshop installation (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from £15,000+

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the necessity for upgrades from Essential Energy will increase overall costs. We provide transparent quotes based on your specific workshop and equipment needs—there are no hidden fees involved.

Important Reminder: All Electrical Work Must Be Performed by Licensed Professionals

This is a crucial point to highlight. In New South Wales, all electrical wiring work must be carried out by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates across Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create serious safety hazards, and lead to hefty fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could have grave consequences.

Your Frequently Asked Questions Answered

Can I Use My Welder from a Standard Power Point?

Small stick welders (up to around 140A output) can indeed be used with a standard 10A or 15A power point. larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or potentially cause the wiring to overheat if the breaker is faulty. If you are welding regularly, it is essential to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Typically Needed in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop generally needs a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future additions. We tailor the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check our complete guide on Do I Need Three-Phase Power on My Property? to determine if it meets your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. if it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will evaluate this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can usually be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting typically takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.
