Dedicated Circuits: Power Solutions for Heavy Workshop Tools

If you have a shed on a rural property and are contemplating the conversion of that space into a fully operational workshop, prioritising the electrical setup is vital. Utilising a MIG welder, air compressor, and table saw on the same circuit as your home can result in considerable complications, including frequent circuit breaker trips, flickering lights, and potentially dangerous overload scenarios that threaten both safety and operational efficiency.

This detailed guide outlines the key aspects of wiring a dependable workshop in the rural regions of the Mid North Coast. We will examine the significance of dedicated circuits, sub-boards, and the advantages of three-phase power for larger machinery. If your requirements are limited to basic electrical needs—such as lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a suitable starting point. This article specifically addresses workshops that demand substantial power for heavy-duty tasks.

Recognise the Significance of Dedicated Circuits for Workshop Power

Many homes operate multiple outlets on shared circuits, which is usually adequate for low-power devices such as kettles and televisions. complications arise when attempting to operate a 32-amp MIG welder alongside an air compressor. This can lead to severe issues if not managed correctly.

Consider the potential consequences of connecting heavy machinery to household circuits:

• Frequent circuit breaker trips — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker immediately or, in more severe cases, may cause the wiring to overheat before the breaker has a chance to activate.
• Voltage drops — Extended cable runs from the main board to the shed can result in voltage sag. This can lead to your tools running at elevated temperatures, performing less efficiently, and wearing out more quickly.
• Power interruptions in the home — Your partner may encounter a power loss in the kitchen due to the compressor starting up, often resulting in inconvenient discussions.
• Increased fire hazards — Overloaded wiring within walls and along cable runs is a major contributor to electrical fires in rural areas.

Establishing dedicated circuits can effectively mitigate these issues. Each heavy tool is assigned its own dedicated circuit, appropriately sized for its load, alongside individual breaker protection. This arrangement ensures that power is not shared, thus preventing overload.

Assess the Power Requirements of Common Workshop Equipment

Before your electrician can devise an efficient circuit layout, understanding the power requirements of your equipment is essential. Below is a breakdown of typical power draws for common workshop tools:

• MIG welder — Requires between 15A and 32A, depending on the model. Larger 240V welders typically operate at the upper end. Units designed for three-phase power will have different requirements (more on that later).
• Air compressor — Consumes approximately 10A to 15A. The startup surge can be significant, as compressor motors often draw three to four times their running current for a few seconds during startup.
• Table saw — Generally uses between 10A and 15A for a quality cabinet saw. Less expensive contractor saws may consume less power, but you are likely not seeking a budget option.
• Lathe (wood or metal) — Similar to table saws, these typically require between 10A and 15A, with metal lathes usually being on the higher end of the spectrum.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while using other tools, meaning it should be on its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, thus requiring a dedicated circuit.

When you add up the power consumption, it becomes clear that a single 20-amp circuit from the house will not suffice. A well-equipped workshop may easily require 80 to 100+ amps across all circuits when operating at full capacity, highlighting the need for a comprehensive electrical plan.

Choose the Right Circuit Breaker Size and Include RCD Protection

Each circuit in your workshop needs a breaker that aligns with the cable size and anticipated load. Your electrician will determine this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery that requires considerable power.
• Three-phase breakers — These should be sized according to the specific equipment requirements (details below).

RCD protection is essential. In accordance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must incorporate RCD (safety switch) protection. This legal stipulation is designed to safeguard against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture elevate the likelihood of earth faults. RCDs promptly cut power if a current leak to earth occurs, which can differentiate between a minor shock and a serious injury.

Typically, your electrician will implement a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that combine both functions. RCBOs are particularly beneficial in workshops as a fault in one circuit does not disrupt power to others, resulting in a more reliable electrical system.

Install a Dedicated Sub-Board to Fulfil Your Workshop's Electrical Needs

Rather than running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop provides a more efficient solution. Here are the advantages:

• Shorter cable runs — One heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This setup reduces voltage drop and lowers cable expenses.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t need to return to the house to reset it, enhancing efficiency.
• Future expansion — A properly sized sub-board accommodates the addition of more circuits later on, making it easy to incorporate new tools in the future.
• Isolation capability — You can turn off all workshop power from a single main switch without affecting the electricity in the house, which is a crucial safety feature.

If your home switchboard is outdated or operating at full capacity, an upgrade may be necessary to effectively support the workshop sub-board. Older ceramic fuse boards are unlikely to safely handle the increased load.

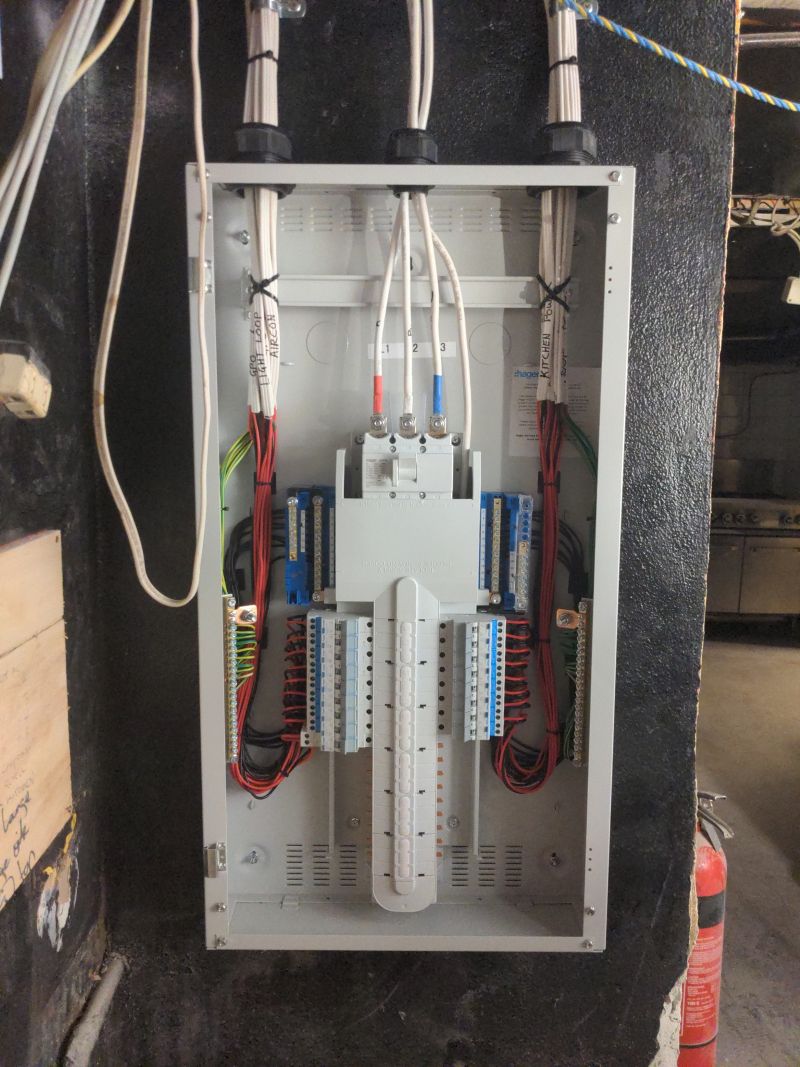

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions to ensure long-term efficiency.

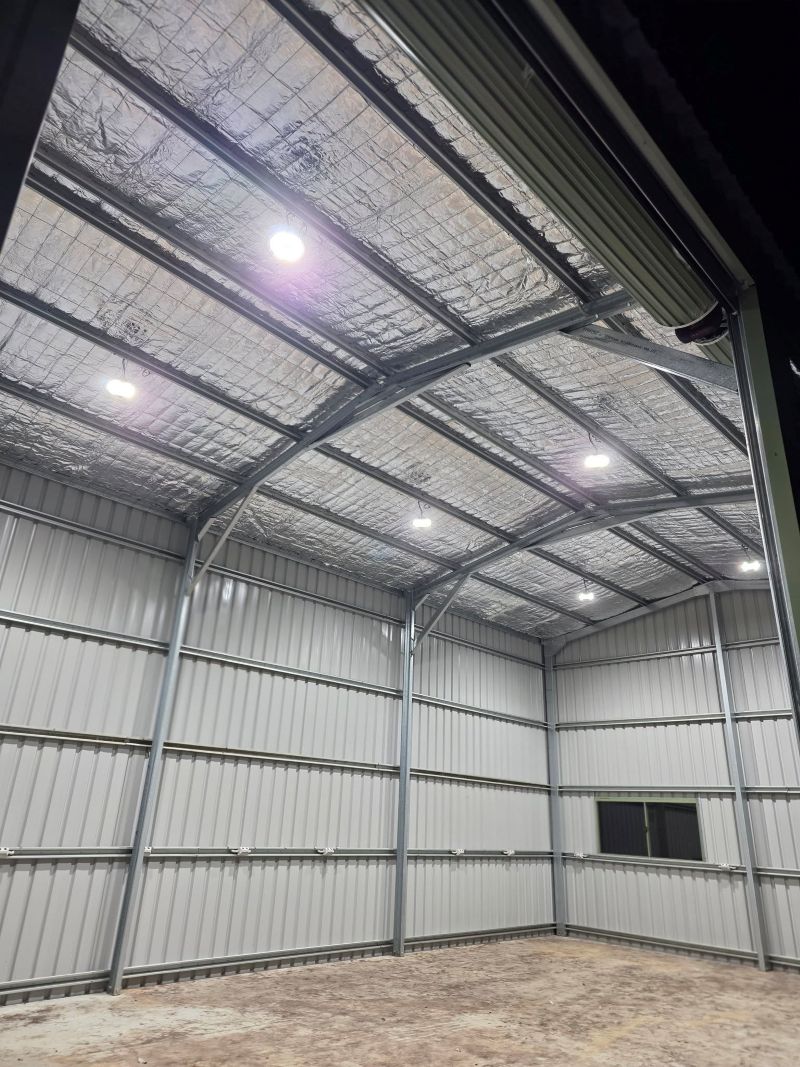

Create a Comprehensive Lighting Plan for Your Workshop

Sufficient lighting is vital for safety in your workshop. Clear visibility is essential, especially when handling sharp blades and hot materials. Here are some key lighting considerations:

• High-lumen LED battens — LED panels or battens deliver bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure visibility.
• Dust-proof fittings — Standard lights can become obstructed by sawdust and metal shavings. Opt for IP-rated fittings that are dust and moisture resistant for durability and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is crucial for precision work, enhancing productivity and safety.
• Separate lighting circuit — Lighting should run on its own circuit to ensure illumination remains available even if a power circuit trips. Being left in the dark next to a running table saw poses a significant safety hazard.

We have extensive experience with lighting layouts in commercial spaces. Our team can assist you in developing a workshop lighting plan that greatly enhances your working environment while adhering to safety standards.

Prepare for Efficient Ventilation and Dust Extraction Circuits

When engaged in woodworking or welding, ensuring proper ventilation is just as critical as having sufficient electrical power. Dust extraction systems and exhaust fans require dedicated circuits due to several important factors:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure proper airflow. If you are implementing a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications.

Leverage the Benefits of Three-Phase Power for Heavy Equipment

When undertaking intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power offers several distinct advantages:

• Increased power capacity — Three-phase motors are more efficient and yield greater power without the excessive startup surges typically associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables generally operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors run more smoothly and remain cooler, extending the lifespan of your tools and enhancing overall efficiency.

Accessing three-phase power in rural areas of the Mid North Coast depends on availability at the street level. Some properties may already have a three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further details, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is accessible, your workshop will require the installation of a three-phase switchboard equipped with appropriately rated breakers and an effective earthing system to ensure safety and compliance.

Protect Your Equipment with Surge Protection

Tools featuring electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Your workshop generates surges each time a large motor starts or stops. Coupled with the voltage instabilities often found in rural power lines, your equipment faces significant risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This is a cost-effective measure compared to the expense of replacing the electronic components of a $3,000 welder or CNC controller.

If your property is susceptible to storms—which is common in the Mid North Coast—we recommend adding surge protection at the main switchboard to guard against lightning-induced surges that could damage your equipment.

For properties that rely on a generator for backup power, incorporating a generator changeover switch ensures seamless transitions between mains power and generator supply without risking back-feeding or damaging connected equipment.

Integrate Additional Features for Your Workshop Fit-Out

Here are several more features to consider including in your workshop wiring from the outset:

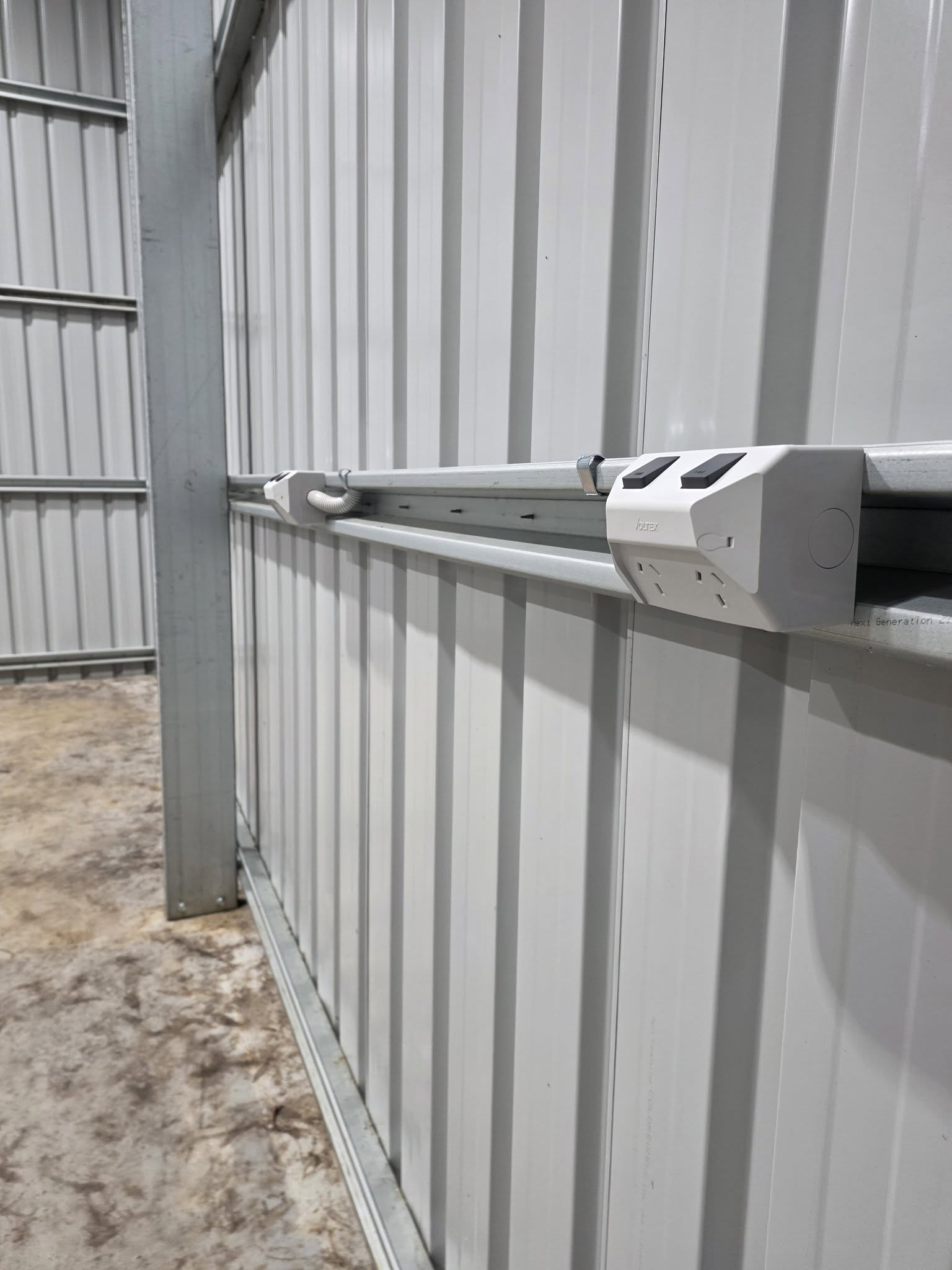

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and outlets conveniently positioned near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is significantly easier to run cables during the initial fit-out than after the walls are completed.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas that lack sufficient street lighting.
• EV or equipment charging — If you are using electric equipment (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Estimate the Costs of Your Workshop Electrical Fit-Out

Cost estimates will vary based on the size of the workshop, the number of circuits needed, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will increase overall costs. We provide transparent quotes based on your specific workshop and equipment requirements—there are no hidden fees involved.

Important Reminder: All Electrical Work Must Be Conducted by Licensed Professionals

This is a crucial point to emphasise. In New South Wales, all electrical wiring work must be carried out by a licensed electrician. This encompasses the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to substantial fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could have serious consequences.

Your Frequently Asked Questions Addressed

Can I Use My Welder with a Standard Power Point?

Small stick welders (up to around 140A output) can indeed be used with a standard 10A or 15A power point. Larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or potentially cause the wiring to overheat if the breaker is faulty. If you are welding regularly, it is crucial to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Usually Needed in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop generally requires a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future additions. We tailor the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops operate adequately on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check out our complete guide on Do I Need Three-Phase Power on My Property? to determine if it aligns with your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your home switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will evaluate this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.

Ensure Your Workshop Is Properly Wired for Maximum Efficiency

If you are establishing a workshop on your property and wish to ensure it is executed correctly from the outset, reach out to us. We will visit your site, evaluate your space and equipment list, and develop a customised plan that meets your power requirements without compromising safety or quality.

Contact Hack-It Electrical Solutions at 0402 079 803 or get in touch with us online to arrange a quote for your project.

We are your local electricians in Bellingen, proudly serving the entire Mid North Coast from Nambucca Heads to Woolgoolga and up to Dorrigo.
