Victorian Tile Restoration: Uncovering Hidden Safety Risks

Recognising Movement and Loose Grout in Victorian Tile Floors: Evaluating Safety Concerns in Stapenhill

Noticing movement in your Victorian tile floor or detecting loose grout joints frequently indicates an underlying issue that goes beyond superficial wear. The homeowner in this Stapenhill property expressed escalating concerns about the shifting in various areas of the entrance floor. Loose sections, cracking joints, and uneven surfaces posed a significant trip hazard. Although this floor was part of an original Edwardian entranceway that retained much of its historic charm, decades of use, previous repair efforts, and ongoing movement had made it vulnerable to further deterioration.

Performing a Comprehensive Evaluation of Initial Floor Conditions

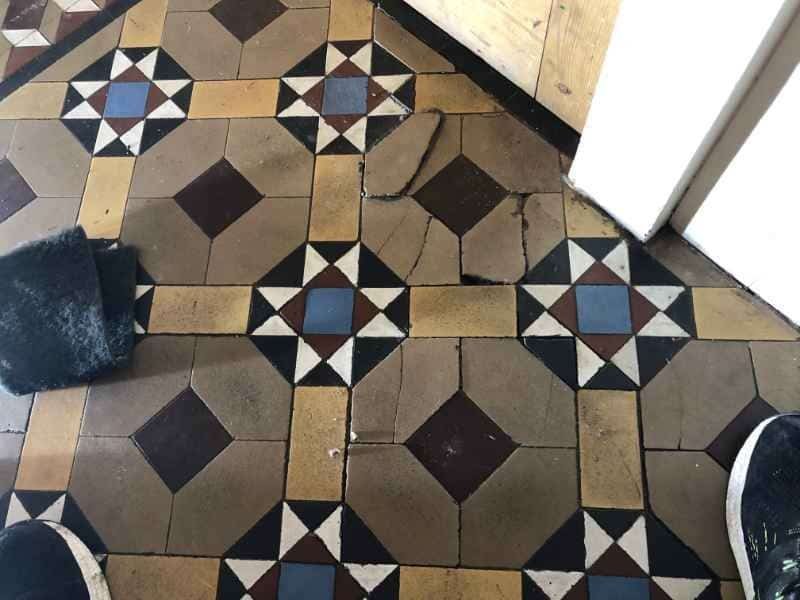

The entrance showcased a remarkable display of Victorian geometric tiles, characteristic of properties from the era during Burton's industrial expansion. Years of foot traffic had caused noticeable wear in the central pathway, while the edges remained relatively intact. Some tiles shifted underfoot, and gaps emerged between adjoining sections due to the collapse of earlier repairs. The homeowner's primary concern was safety, particularly in the entrance area that experienced heavy daily footfall.

Loose grout was widespread in various parts of the floor. In several areas, earlier repairs had utilised harder materials that did not bond effectively with the surrounding tiles. Small fragments had chipped away from the joints, exposing edges to further wear. The uneven surface between neighbouring tiles created an uncomfortable sensation underfoot and conveyed a neglected appearance, despite regular cleaning efforts by the household.

The condition of the clay surface varied significantly throughout the hallway. Some sections retained their vibrant colour and definition, while others exhibited darker patches where years of grime had permeated the naturally porous tile. Historic clay floors of this nature gradually absorb contaminants over time, explaining why routine washing often loses its effectiveness as the years progress. This resulted in a floor that appeared worn and inconsistent, even though the original geometric design largely remained intact.

A closer examination uncovered evidence of multiple previous attempts to address isolated defects rather than treating the floor as an integrated unit. Various sections had been lifted and replaced at different intervals, leading to subtle variations in level and alignment. Some joints contained deteriorated material that had become brittle and discoloured, while other repairs appeared significantly newer. These inconsistencies disrupted the visual continuity of the original layout.

While the entrance floor remained functional, the practical implications of the deterioration were increasingly hard to overlook. Tiles shifted slightly when weight was applied, grout continued to loosen, and the uneven surface complicated cleaning efforts. Dirt accumulated in open joints and unstable areas, creating a cycle where the floor appeared progressively more worn. The homeowner realised that superficial cleaning would not resolve these issues, emphasising the need to understand the full extent of the underlying problems.

The original pattern of the floor was one of the property's most attractive features. Decorative borders and contrasting clay colours continued to define the layout, contributing to the entrance's historic character. Despite the movement and visible deterioration, much of the original material remained intact, adding to the frustration of the situation. The floor seemed neglected, yet a significant portion of the original fabric was salvageable.

The project began with a detailed assessment of the floor's visible condition rather than immediate repairs. Loose sections, open joints, worn traffic paths, and areas of previous repairs were all meticulously recorded. Recognising the extent of the deterioration provided clarity on the floor’s condition and laid the groundwork for subsequent actions.

What Is the Connection Between Uneven Victorian Tiles and Failed Repairs?

Uneven tiles and open joints frequently indicate that prior repairs have not effectively addressed issues beneath the surface. In this Stapenhill hallway, the movement affected not only individual tiles but also the interconnected areas where the supporting bed had lost its stability. As the support weakened, tiles began to shift independently, resulting in the gradual opening of surrounding joints.

Loose tiles seldom fail in isolation; the support beneath them has changed.

The visible symptoms explained why dirt collected rapidly around the affected areas. Open joints trapped contaminants, while movement allowed debris to penetrate deeper into the gaps whenever the floor was traversed. Historic clay tiles are inherently absorbent, meaning that once dirt infiltrates weakened joints, it becomes progressively more challenging to remove using conventional cleaning methods. Similar issues, along with effective long-term solutions, are discussed in this guide to properly restoring Victorian tiles.

Why Is Stabilising Loose Victorian Tiles Essential Before Restoration Work?

Repeatedly cleaning a floor with loose tiles often postpones addressing the underlying issue and may make ongoing deterioration easier to overlook. Once the extent of the movement had been evaluated, the planned cleaning was suspended to prioritise stabilising the unstable areas. Attempting restoration prior to stabilisation would leave the root problem unresolved and could potentially exacerbate the situation.

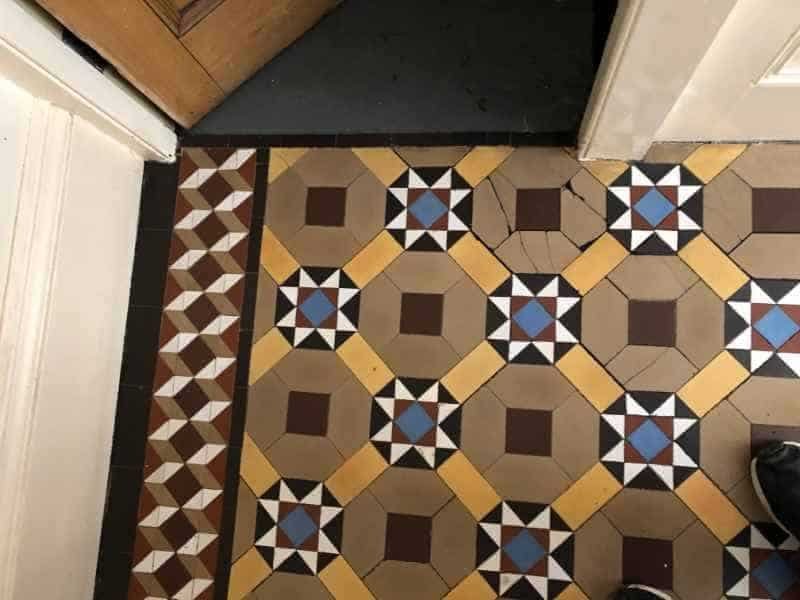

Cleaning alone would have temporarily enhanced the appearance while leaving the movement beneath the floor unchanged. Stabilisation first allowed for the careful removal of affected tiles, the elimination of unsuitable materials, and the preparation of the supporting bed before relaying the original pieces in their correct positions. Damaged joints were repaired simultaneously, restoring continuity across the entire floor.

Only after addressing the structural issues could the subsequent restoration stages proceed in the proper sequence. This approach safeguarded the original tiles, minimised the likelihood of future movement, and ensured that the cleaning and finishing work yielded lasting results, rather than a temporary fix.

Transforming a Safety Hazard into a Functional Entrance: The Advantages of Stable Victorian Tiles

Homeowners frequently first notice improvements in stability following a successful Victorian tile restoration project. After completing the repairs, the entrance floor no longer shifted under pressure, and the previously uneven areas felt secure underfoot. The removal of loose sections transformed the hallway from a source of concern into a functional, dependable entrance once again.

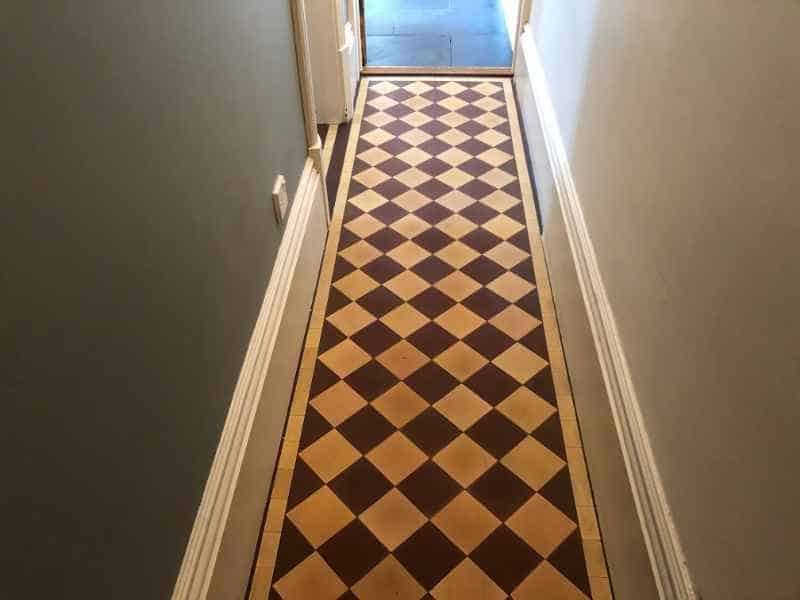

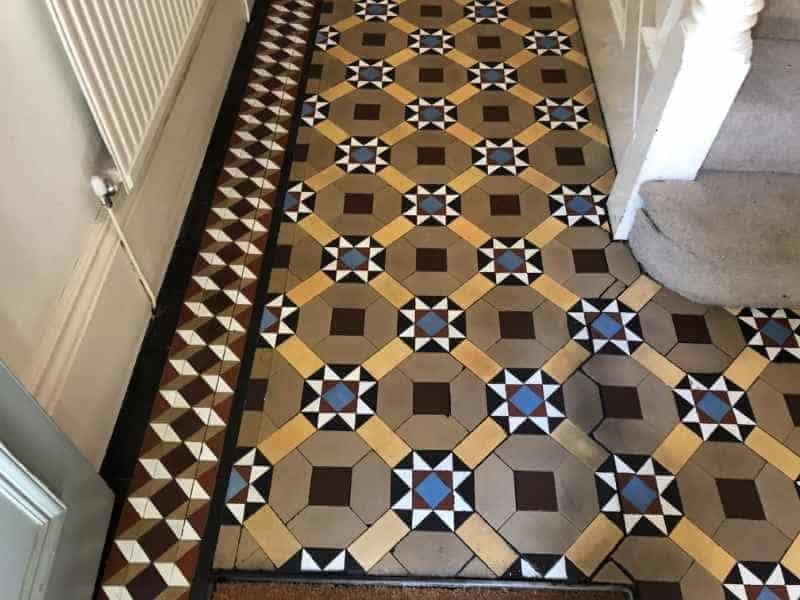

The visual enhancements were equally striking. Repaired joints resulted in a more uniform appearance, while thorough cleaning revealed colours and pattern details that had been obscured by years of grime accumulation. A breathable protective treatment was applied to resist future staining while still allowing moisture to dissipate naturally through the floor structure.

A fully restored Victorian tile floor exhibits the original fired matte surface with consistent colour and pattern. When a topical sealer is deemed appropriate, it can impart a slight protective sheen without altering the character of the period floor. The completed entrance maintained its historic aesthetic while becoming safer, cleaner, and considerably easier to maintain.

How Can You Gain Insights into Restoring Victorian Tile Floors to Avoid Past Mistakes?

Neglecting the underlying causes of tile movement often results in repetitive issues. One of the crucial lessons learned from this Stapenhill project was that visible symptoms seldom occur in isolation. Loose joints, uneven levels, and movement underfoot were all interconnected, and concentrating solely on appearance would never yield a durable solution.

This project also underscored the importance of executing the work sequentially. Stabilisation was the first step, followed by cleaning, joint repairs, and protective finishing. This systematic approach preserved the original clay material while effectively addressing the homeowner’s concerns.

Readers seeking broader insights can explore the main Victorian tile cleaning resource, which delves into common issues, maintenance considerations, and restoration principles for historic clay floors. Understanding the causes of deterioration remains the most effective way to prevent repeating previous mistakes, helping period entrances maintain their original character for many years.
